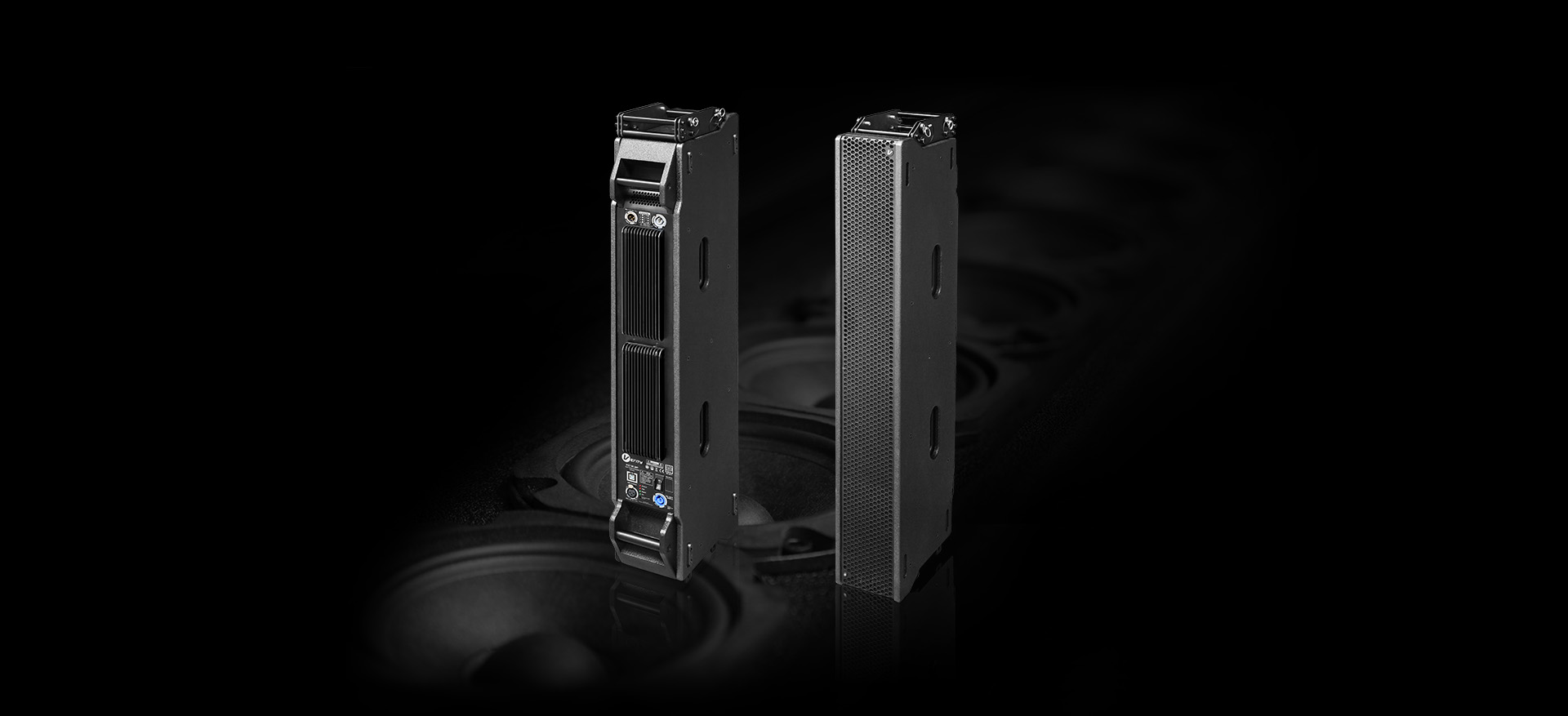

AC12.3P
AC12.3P is an active arrayable and steerable column composed of 12 x 3” full range drivers feed by 4 amplifiers of 190W （RMS）. An internal DSP is in charge of the sound steering control and the equalization for a smooth frequency response. The use of full range drivers avoids the use of crossover and the inherent phase problems.
Subwoofer options comprise the SUB136T.
Applications
The maximum number of columns in one array is 8 units. It means an 8-meter-long lineal source with the advantages of a greater near field than standard line arrays. The sound attenuation in near field is only 3dB each time the distance is doubled instead the 6dB attenuation that happen in the far field. As well the sound beam angle control goes down to 100Hz due to the big length of the array.There is not split angle between cabinets. The array is always flown vertical and the sound beam is configured by digital signal process.

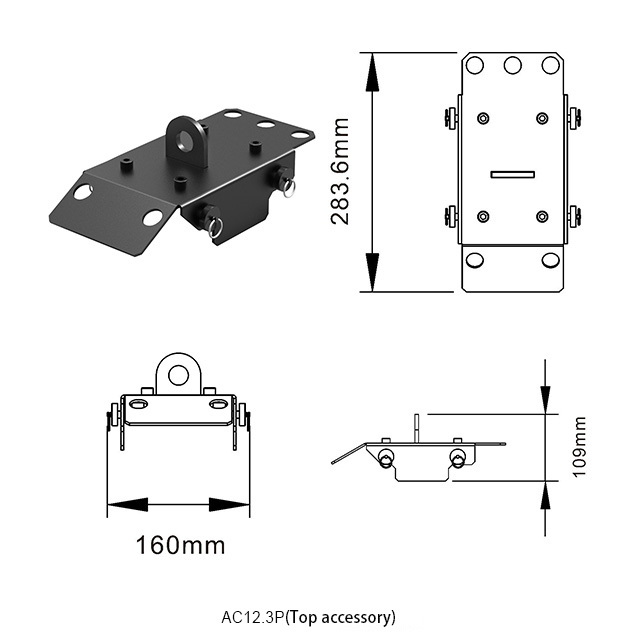

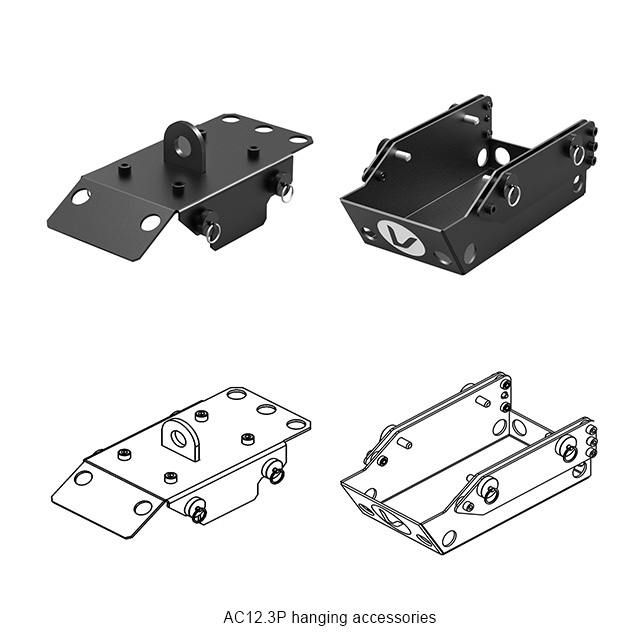

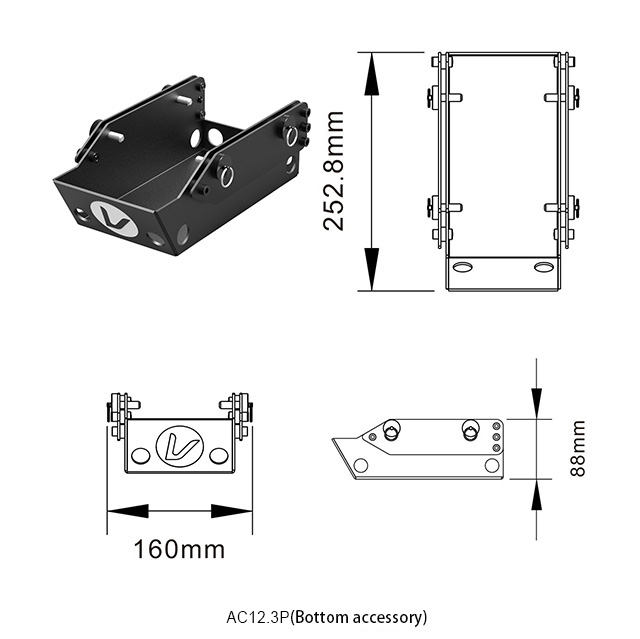

Hanging accessories:
Software download
Windows 32Bit
MAC OS 10.5.8 or higher
Update: 3.8.24 build 125137 2020-01-11 ;
Update: 3.8.24 build 123146 2019-10-11 ;
Update: 3.8.24 build 119488 2019-04-09 ;
Update: 3.8.24 build 123146 2019-10-11 ;
Update: 3.8.24 build 119488 2019-04-09 ;
Specifications
| Model | AC12.3P |
|---|---|
| Frequency response | 90Hz~13kHz(-6dB) |
| Maximum SPL@1m | 123dB(Music power/Program) |
| Input Sensitivity | 32dB |
| Horizontal coverage | 120°@5kHz |
| Vertical coverage | Can be configured according to the actual application |
| Driver | 12×3″Full range European drivers |
| Connector | XLR3 for signal input and stack output/USB Client for DSP control/powercon for Mains input and output |
| Cabinet | CNC made 12mm MDF,Spraying technology of black sand paint |
| Amplifier | 4x230W （40ms） |
| Controls | DSP control |
| Protections | Thermal,Soft power limiter |
| N.W | 23kg |
| Product Dimendions | W151xH1021xD310mm |
| Packaging and transportation | Flying case packaging and transportation |
| Flying case dimension | W1071xH360xD872mm |
| The above packing dimensions, net weight, and gross weight are for reference only. The accurate values are subject to the identification on the batch of products. | |
Remark：
Verity Audio reserves the rights to make changes in specification without prior notice.
The final specification is subject to the user’s manual.

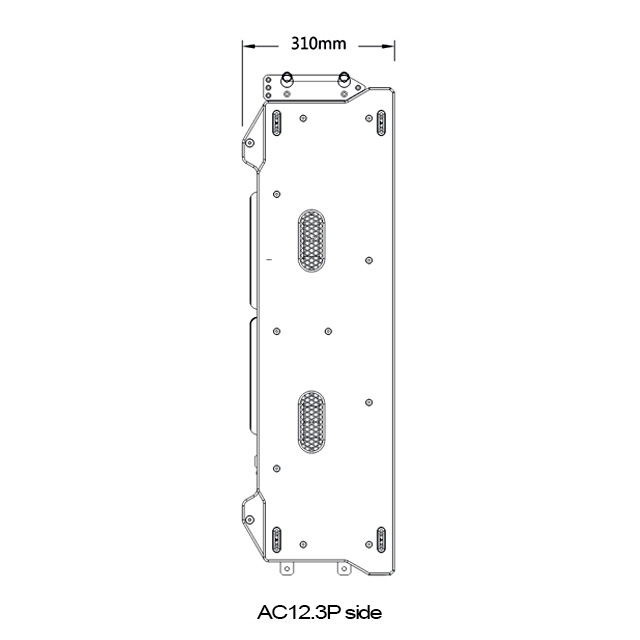

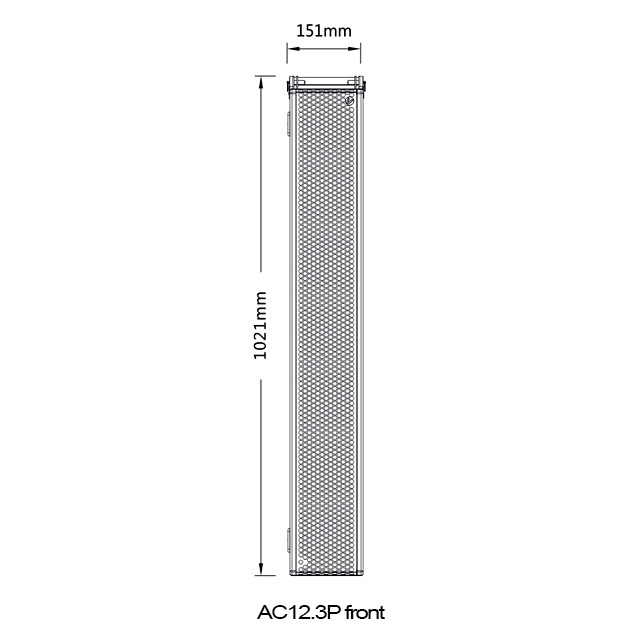

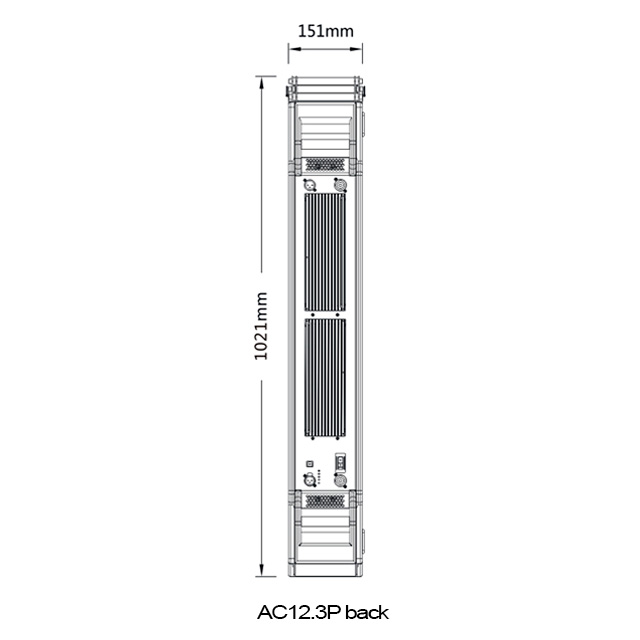

Dimensions
AC12.3P |
AC12.3P |
AC12.3P |
