IWAC 220

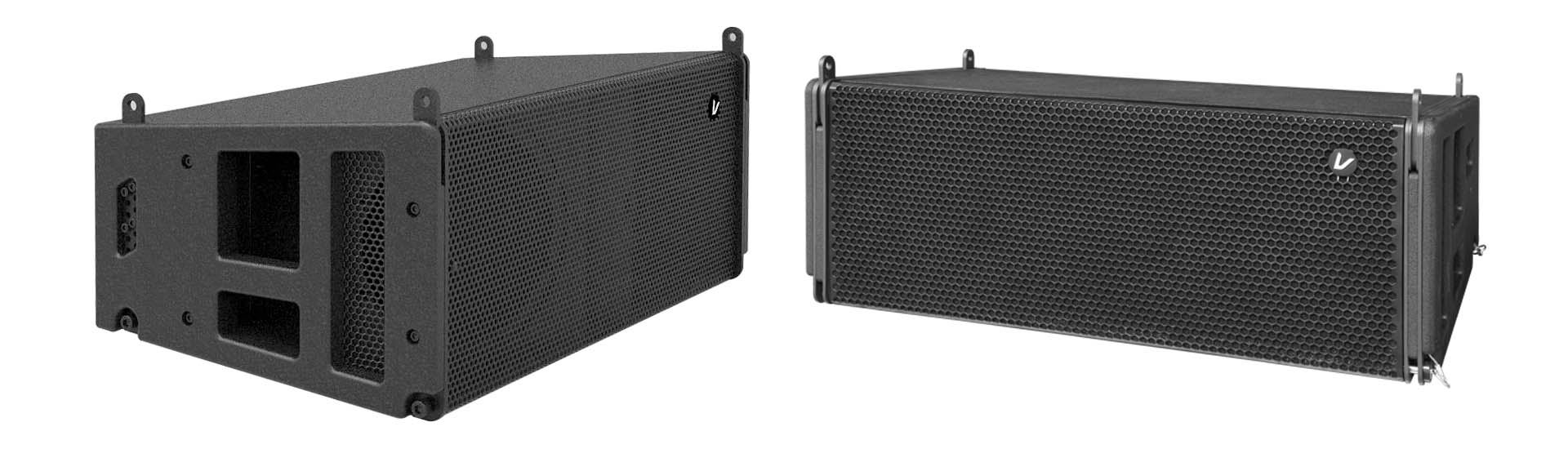

IWAC220 is a full frequency vertical linear array loudspeaker which is composed of dual 10″mid-low frequency and dual 1.73″compression driver. The IWAC linear array speaker is a product that advocates physical correction and simple application, professional installation design,simple application adjustment , with excellent phase and frequency response which make you have impressive experience even in far field.
IWAC220

Application

It have the design with H120°xV10°frequency coverage angle,16Ω low frequency, 16Ωcompression driver with the AES power up to 500W it can delivery Sound pressure up to 136dB(Peak level at 1 m under half space)birch plywood cabinet with CNC manufacturing process, emery spraying craft make it highly durable, patented rigging design make it easy to install, which make it can be able use in small and medium tour show and need medium throw distance situation.
IWAC220 will have good performance when it work with SUB118TL.

Specifications

Model IWAC220 IWAC220i/IWAC220iW
Power Handling LF:500W/HF:110W (AES) LF:500W/HF:110W (AES)
Program Power LF:1000W/HF:220W LF:1000W/HF:220W
Nominal impedance: LF:16Ω/HF:16Ω LF:16Ω/HF:16Ω
Frequency Response 80~18kHz(-10dB) 80~18kHz(-10dB)
Sensitivity LF-100dB;HF-113dB LF-100dB;HF-113dB
Maximum SPL >136dB(Peak level at 1 m under half space) >136dB(Peak level at 1 m under half space)
Coverage angle
Horizon 120° 120°
Vertical 10° (1box) 10° (1box)
Drivers
LF driver 2x 10″Neodymium driver 2x 10″Neodymium driver
Voice coil 2.5″(65mm) 2.5″(65mm)
HF driver 2×1.73″ driver 2×1.73″ driver
Voice coil 1.73″(44mm) 1.73″(44mm)
Exit 1″(25.5mm) 1″(25.5mm)
Connector 2xNEUTRIK® NL4 SPEAKON® parallel LF:±1 Hf:±2
Cabinet CNC made 15mm birch wood sandy wear-resisting environmental polyurea spray paint
Hanging side frame Laser processing steel plate joining together with black paint Have 4PCS Ø10 stainless steel Laser processing steel plate joining together with black paint Equipped with 8x(M6x12)/4x(M10x25)screws
Application Minimum 4,maximum 16 units line array Minimum 1,maximum 12 units line array
Product Dimensions(mm) IWAC220:W742xH287xD425 / IWAC220-4UVTS:W810xH1370xD660 IWAC220:W730xH287xD421 / IWAC220-4UVTS:W840xH625xD390
N.W IWAC220:34.5kg / IWAC220-4UVTS:175kg IWAC220i:25.3kg / IWAC220iW:33.5kg

Remark:
Verity Audio reserves the right to interpret the above parameters. The parameters are subject to change without prior notice. The most specific parameters are subject to the product manual.

Dimensions

IWAC220 size IWAC220i size
