IWAC220P
IWAC220P is the first Active Linear-Array product from Verity Audio. Each full-range cabinet is loaded with dual-10”LF and dual-1”Exit, horn-loaded HF compression drivers. The result of careful mechanical design and driver positioning has minimized the need to use electronic correction of group delay for phase correction, yielding our newest generation of high resolution audio.
The high efficiency plug-in amplifier module mounted on the rear of the cabinet facilitates quick repair or replacement even when hanging in an array. Each of the drivers has a separate DSP and Amplifier channel (2 X 860W RMS plus 2 X 230W RMS) allowing precise control of interaction between drivers and Max Peak output levels >138dB (100—18kHz)
An innovative hardware design allows for presetting splay angles while the array is on the ground, vastly reducing set-up time. An optional transport wheel board accommodates (4) cabinets further improving set-up efficiency and adding physical protection during transport. DSP control is via Verity V-NET USB network management system.
Designed for Mid-Size Pro Touring and Installation applications..
Applications
Specifically designed for mobility commercial performance,compatible with all applications.IWAC220P/IWAC220IP/IWAC220IPW specifications
Software download
Windows 32Bit
MAC OS 10.5.8 or higherUpdate: 3.8.24 build 123146 2019-10-11 ;
Update: 3.8.24 build 119488 2019-04-09 ;
Specifications
| Model | IWAC220P | IWAC220IP/IWAC220IPW |
|---|---|---|
| Frequency Range | LF:80~3.2kHz HF:1.5k~18kHz |
LF:80~3.2kHz HF:1.5k~18kHz |
| Frequency Response | 80~18kHz(-10dB) | 80~18kHz(-10dB) |
| Input sensitivity | 32dB | 32dB |
| Short term max SPL | >138dB (Peak level at 1 m under half space) | >138dB (Peak level at 1 m under half space) |
| Horizontal | 120° | 120° |
| Vertical | 10°(1box) | 10°(1box) |
| HF driver | 2×1″Throat 8Ω Neodymium compression drivers | 2×1″Throat 8Ω Neodymium compression drivers |
| Voice coil | 1.73″ | 1.73″ |
| LF driver | 2×10″Neodymium drivers | 2×10″Neodymium drivers |
| Voice coil | 2.5″ | 2.5″ |
| Power(RMS)8Ω | 2x860W + 2x230W | 2x860W + 2x230W |
| Output circuitry | Class D | Class D |
| Electric power | 100~240V/AC 50~60Hz | 100~240V/AC 50~60Hz |
| N.W | 42kg(IWAC220P)/204kg(IWAC220P-4UVTS) | 32.5kg |
| Hanging side frame | Auto-locking Suspension System Laser processing steel plate joining together with black paint Have 4PCS Ø10 stainless steel |
Laser processing steel plate joining together with black paint Equipped with 8x(M6x12)/4x(M10x25) screws |
| Application | Minimum 1,maximum 12 units line array | Minimum 1,maximum 12 units line array |
| Product Dimensions(mm) | W742xH287xD513 | W730xH287xD514 |
| Package Dimensions(mm) | W810xH1370xD660 | W840xH625xD390 |
| Processor | 24 Bit DSP;DSP Max Delay:5ms(1.7m);10 bands PEQ;Q:0.2-25 adjustable;Bes/BW 6~24dB/oct & L-R 12~24dB/oct Optional;Bell/Notch/Hi-shelf/Lo-shelf/All Pass Optional | |
| Connector | 2xNEUTRIK® PowerCon®;2xNEUTRIK® XLR;USB-B(DSP control) | |
| Cabinet | CNC made 15mm birch wood sandy wear-resisting;environmental polyurea spray paint | |
| N.W | 42kg(IWAC220P) / 207kg(IWAC220P-4UVTS) | 32.5kg |
| The above packing dimensions, net weight, and gross weight are for reference only. The accurate values are subject to the identification on the batch of products. | ||

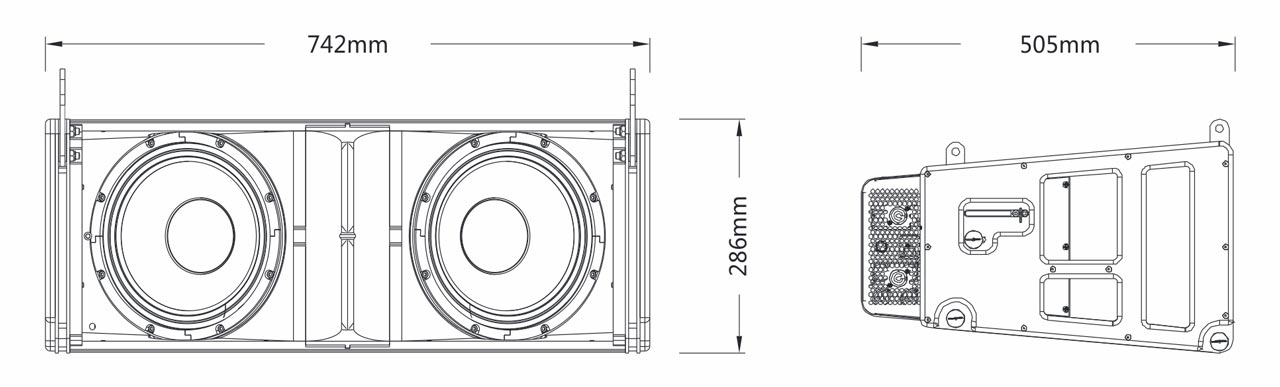

Dimensions
 |
 |
