KH12

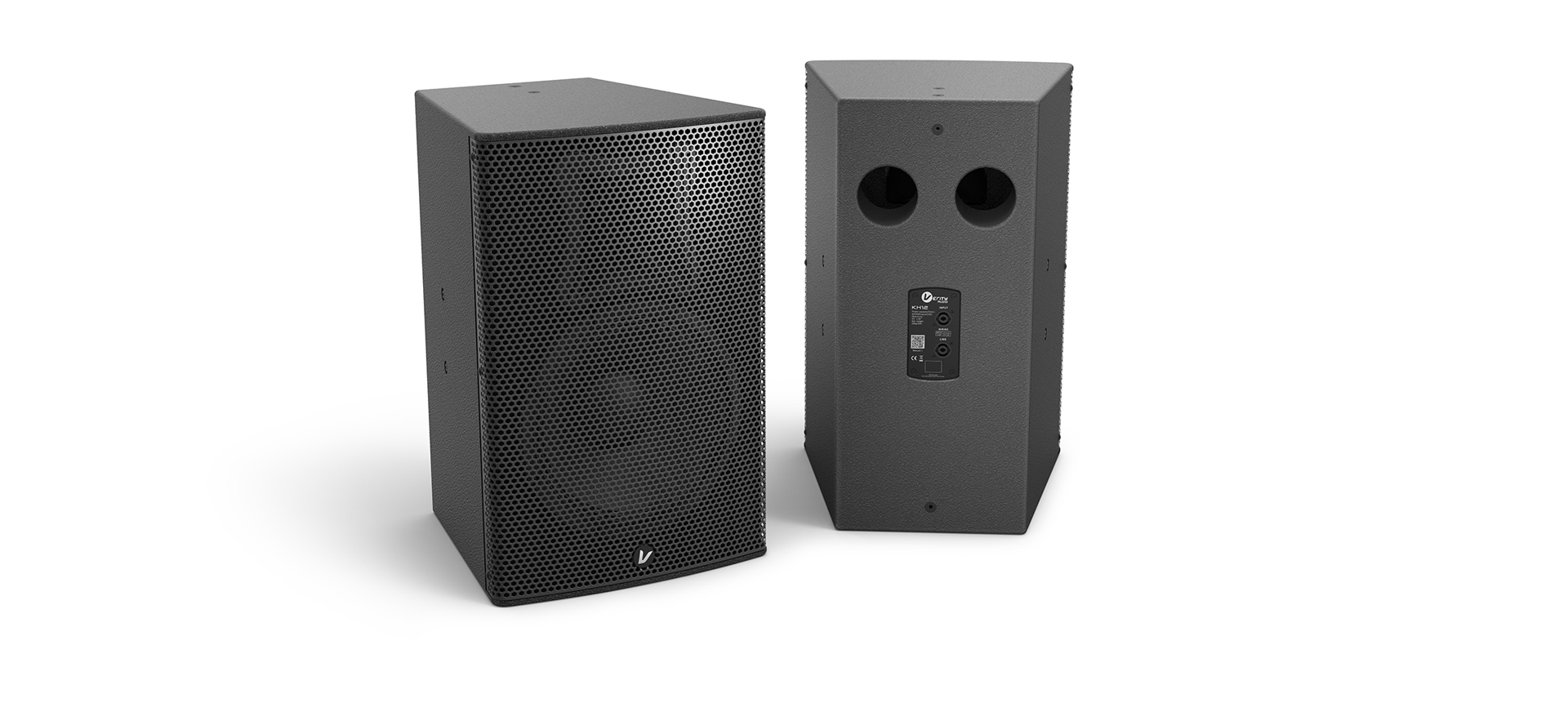

The KH12 is a high performance passive 2-way loudspeaker.
A single 12″ ferrite driver in the bass reflex cabinet and different high frequency sections is suitable for sound applications in a variety of installations.
Designed for precise mode control using 1″ outlet neodymium drivers and large corners. They offer 50º to 100º x 55º rotatable dispersion characteristics.
With a frequency response extending from 43Hz to 20kHz
(processed), these cabinets can be used as a full-range system or complemented by different subwoofers from the SUB or VS series.
The shell is made of birch plywood with impact-resistant black grit-point state paint. The front of the cabinet is protected by a sturdy metal grill.
Features
Specifications
| Model | KH12 |
|---|---|
| Power handling capacity/peak | 1000W(Program)/2000W(Peak) |
| Frequency response（-10dB） | 43Hz~20kHz |
| Maximum SPL | 131.5dB* |
| Nominal impedance | 8Ω |
| Coverage | Horizontal 50° to100° x Vertical 55° , rotatable |
| HF driver | 1″Throat/polymer composite film/neodymium magnet |
| Voice coil | 1.75″ |
| LF driver | 1x 12″ferrite cone driver |
| Voice coil | 3″ |
| Connector | 2x NEUTRIK ® Speakon NL4 parallel (±1 Input/Output, ±2 Link) |
| Cabinet | CNC made birch plywood, Front: coated steel grille, Finish: black grit paint. |
| N.W/G.W | 23.5kg/278kg±5% |
| Product Dimensions | W397xH603xD416mm |
| The above packing dimensions, net weight, and gross weight are for reference only. The accurate values are subject to the identification on the batch of products. | |
Remark:
* Peak level at 1m under half space conditions using pink noise with crest factor 4.
Verity Audio reserves the rights to make changes in specification without prior notice.

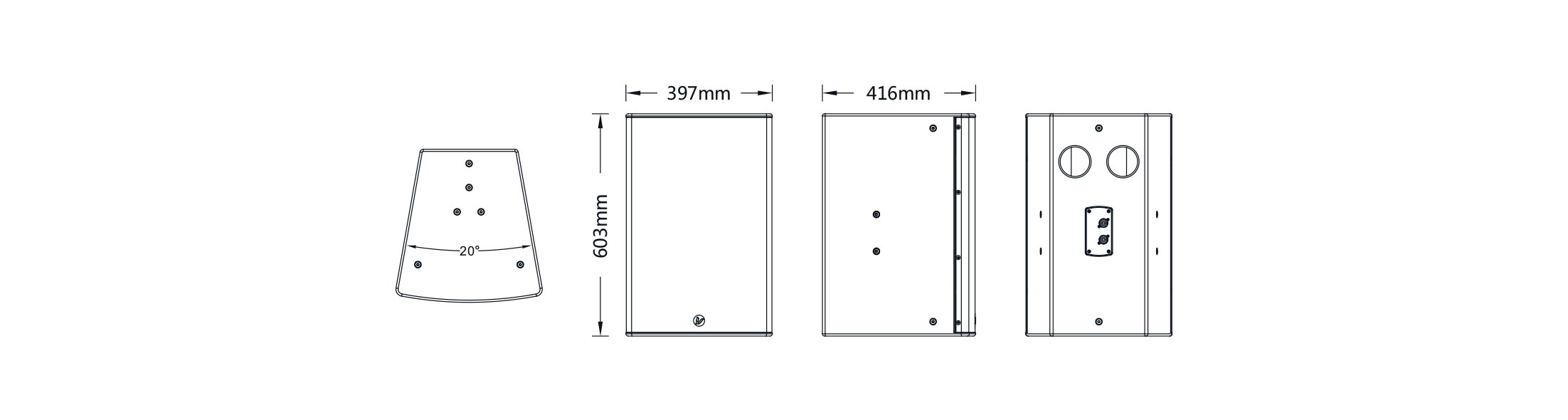

Dimensions
KH12 |
