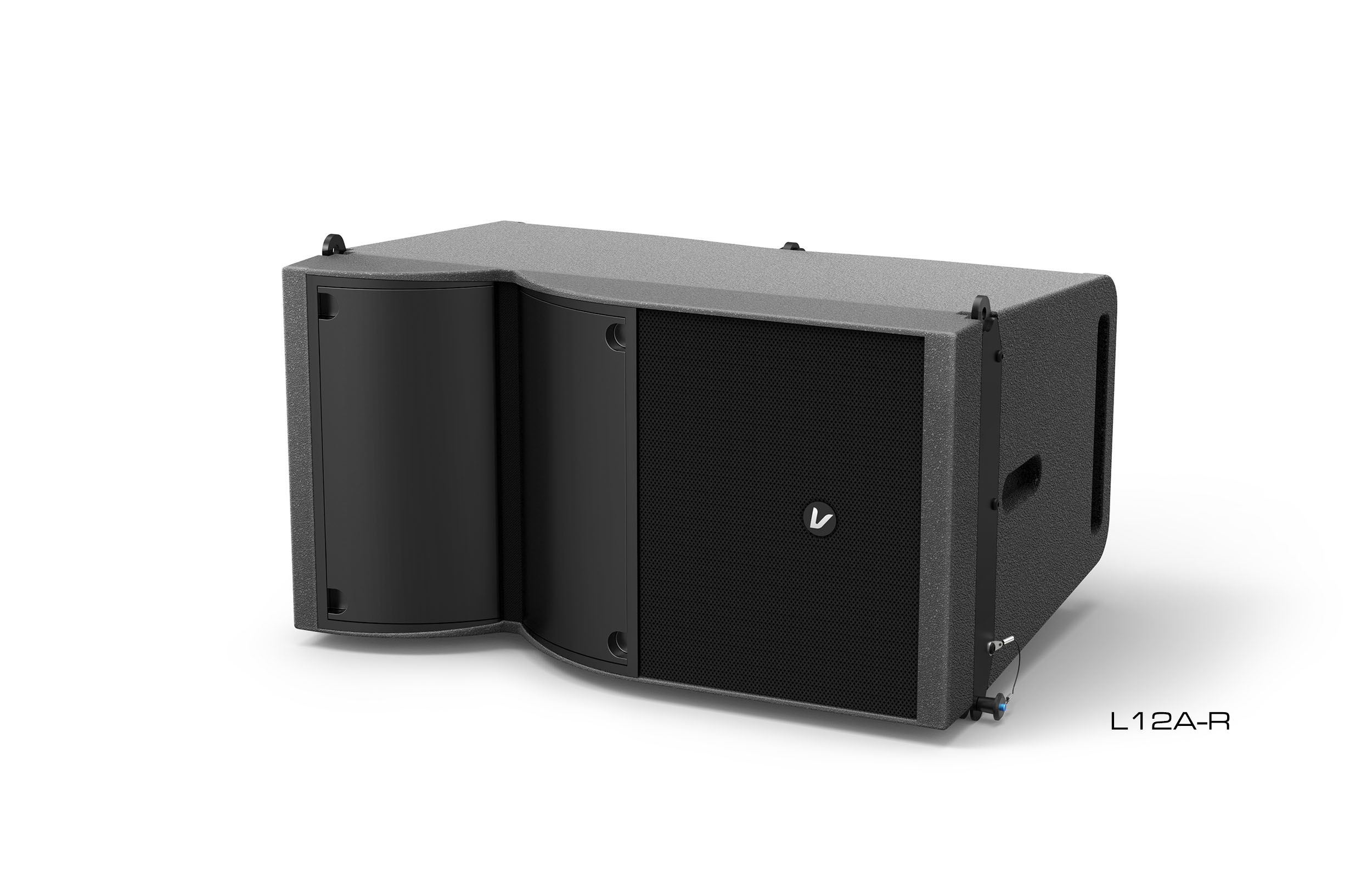

L12A
Active Single 12″ Vertical Line Array Loudspeaker_SPL max＞139dB([STD]preset)
_H=110°/70° symmetric or 90° asymmetric
_Class D amplifier module with 96~265V universal voltage
_Built-in processor to deliver impressive sound
_Minimum 2,maximum 16 units line array
Features
- ● L12A is a active full range vertical line-array loudspeaker which is composed of 1×12″ low and 1×3″compression Hi driver.
- ● It has “easy-to-use” professional installation design, with excellent phase and frequency response which make you have impressive experience even in far field. Module designed with HF horn of H110°/70° symmetric or 90° asymmetric x V10° frequency coverage angle, independent external active amplifier module with maximum output up to 139dB with single module. Each independent channel of power amplifier drives it’s own speaker, because of use independent power module it can achieve consistent group delay. Built-in DSP processor for easy use.
- ● Premium gradeb birch plywood cabinet with CNC manufacturing process. Patented auto-locking mechanism allows wide selection of angles while components are on the ground. Almost four times the installation efficiency of the similar products. one guy can complete the system installation.
Specifications
| Acoustics | L12A |
| Frequency response | 50~18kHz |
| Sensitivity | 32dB |
| Short term max SPL | ＞139dB([STD]preset)* |
| Horizontal | 110°/70° symmetric or 90° asymmetric |
| LF driver | 1×12″ Neodymium driver (V.C:3″ 8Ω ) |
| HF driver | 1x Neodymium compression driver (V.C:3″; Throat:1.4″; 16Ω) |
| Power module | |
| Electric Power | 96~265V AC 50~60 Hz |
| Amplifier | 2x600W(RMS)@8Ω CLASS D |
| Processor | |
| Processor | 24Bit /96k DSP |
| DSP control | TCP/IP(Windows)(Select the preset touch surface on the touch panel) |
| Connect/Cabinet | |
| Connectors | 2x PowerCon TRUE1(Power); 2x XLR parallel(Audio) |
| Cabinet | Premium gradeb birch plywood made by CNC ; Front : steel grill with coating acoustically neutral 3D fabric; Finish : black polyurea spot spray |
| Rigging | 3-point rigging system: Ground preset curvature; Inter-enclosure angles: 0.25°, 1°, 2°, 3°, 4°, 5°, 7.5° or 10° |
| Size/Weight(The above packing dimensions, net weight, and gross weight are for reference only. The accurate values are subject to the identification on the batch of products.) | |
| Product dimension(mm) | W645xH342xD450 |
| Net weight | 33kg |
Remark:
* Peak level at 1m under half space conditions using pink noise with crest factor 4.
Verity Audio reserves the rights to make changes in specification without prior notice.

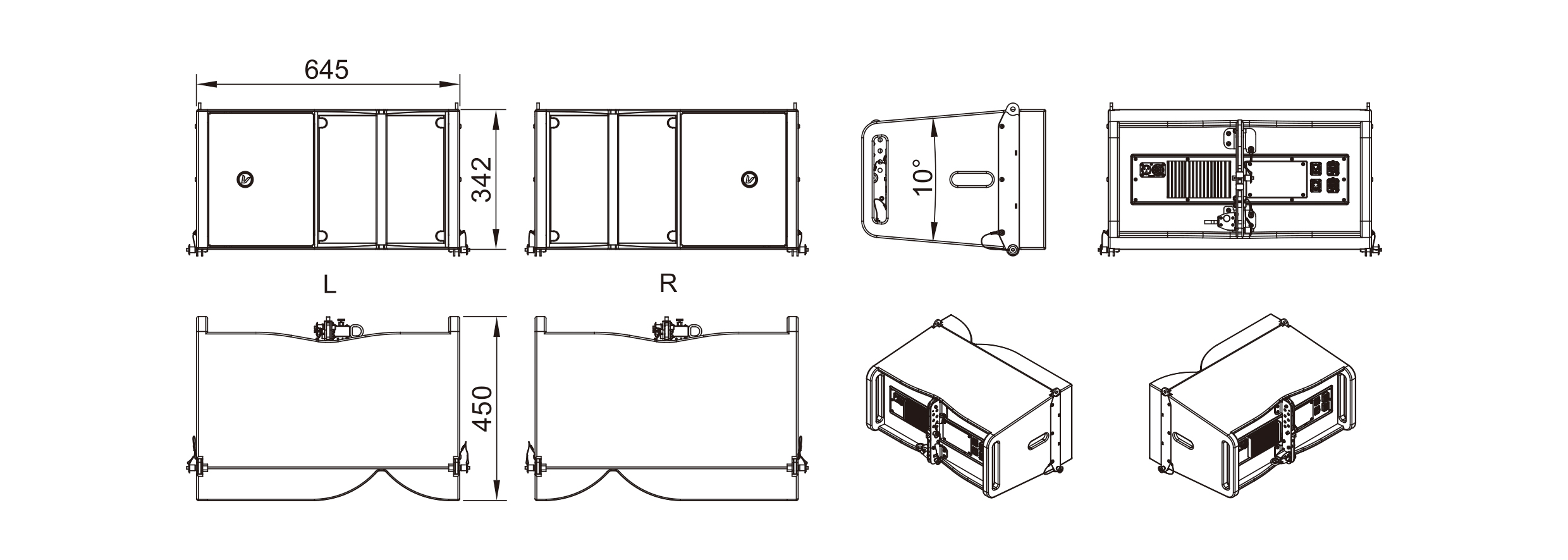

Dimensions
L12A |
