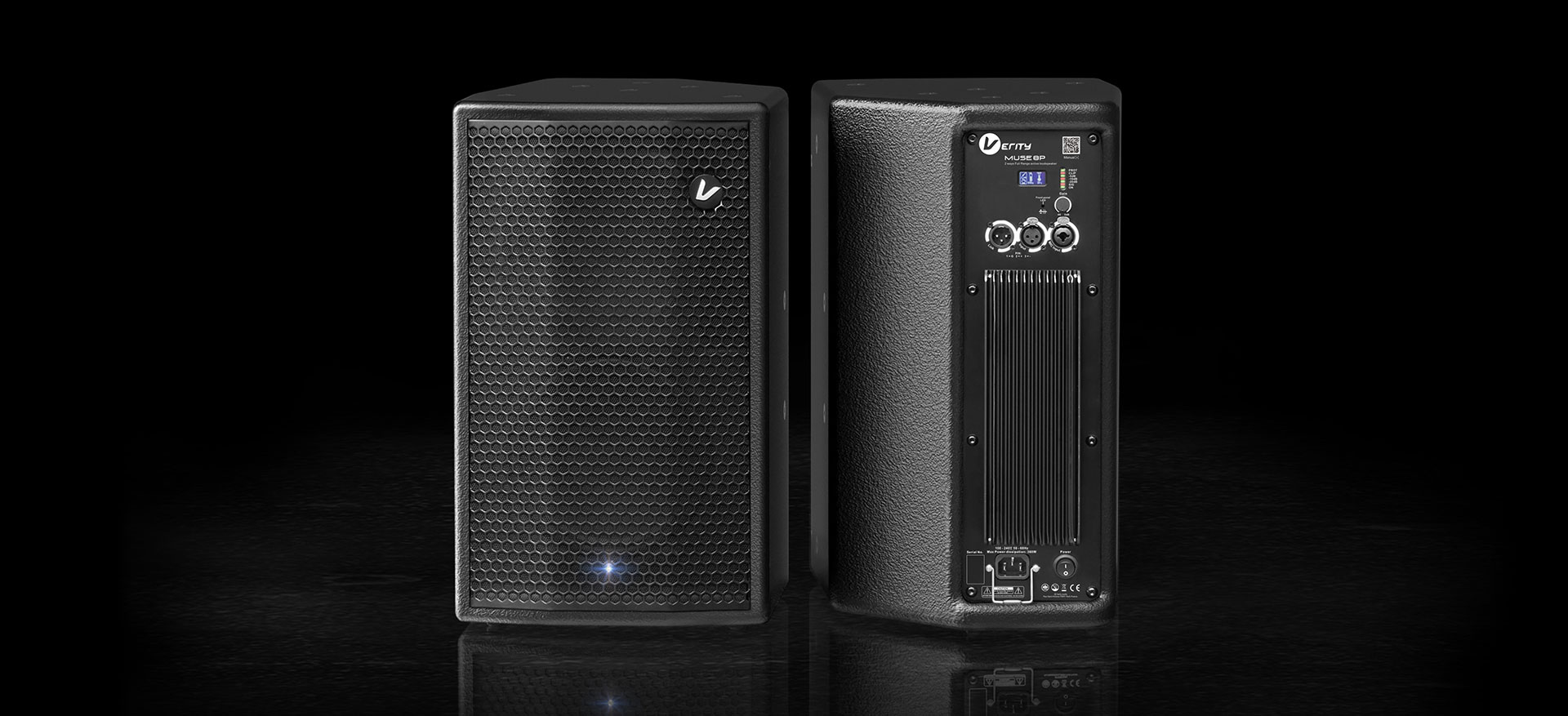

MUSE P Series

MUSE P Series is a multi-function active and phase inversion two frequency full frequency speaker.It is mainly used in sound reinforcement monitoring;It has rotatable 90*50 horn and built in frequency divider and power amplifier module.
It built in frequency divider and power amplifier module.Full voltage suitable for voltage requirements in different countries.MIC and LINE multi-function input mode with the main volume adjustment.It can be used in KTV,multi-function hall,small activities and other places.

musep

Applications

MUSE P series can output a very deep and warm low frequency when install close to the wall, because of special designed of the vent in cabinet.The SUB P series active subwoofer used the 15″ european customize woofer which is specially used for MUSE P series full frequency loudspeaker.SUB P series active subwoofer can output very deep and warm sound when it near the wall because of special designed of the vent in cabinet.

Match:

SUB115P/SUB215Pmusep

Specifications

Model MUSE 08P MUSE 10P MUSE 12P MUSE 15P SUB115P SUB215P
Power 200W (AES) 250W (AES) 300W (AES) 400W (AES)
Program power 400W 600W 800W 800W 860W 2x860W
Frequency range(-6dB) 55Hz~18kHz(-6dB) 50Hz~18kHz(-6dB) 46Hz~19kHz(-6dB) 43Hz~19kHz(-6dB) 40Hz~150Hz(-6dB) 40Hz~150Hz(-6dB)
Frequency Response(-10dB) 50Hz~20kHz(-10dB) 47Hz~20kHz(-10dB) 42Hz~20kHz(-10dB) 40Hz~20kHz(-10dB) 45Hz~150Hz(-10dB) 45Hz~150Hz(-10dB)
Sensitivity 1V 1V 1V 1V 1V 1V
Maximum SPL 116dB 116dB 121dB 121dB 123dB 126dB
Horizon 90º 90º 90º 90º
Vertical 60º 60º 60º 60º
LF Driver 1X8″ ferrite magnet 8Ω driver 1X10″ ferrite magnet 8Ω driver 1X12″ ferrite magnet 8Ω driver 1X15″ ferrite magnet 8Ω driver 1X15″(V.C:3″) 2X15″(V.C:3″)
Voice coil 1.8″ 1.8″ 2″ 2.5″
HF Driver 1X1″ throat diameter8Ω ferrite magnet polyester diagram compression driver
Voice coil 1″ 1″ 1.4″ 1.4″
Connector 1 x Locking IEC power connector;2 x XLR audio input;1 x combo MIC input 1 x Locking IEC power connector;2 x XLR audio input;
Cooling passive passive passive passive passive passive
Cabinet CNC tongue and groove cabinet wood Environmental surface treatment
Output circuitry Class D Class D Class D Class D Class D Class D
AC Power Input AC 96-265V~(50/60Hz) AC 96-265V~(50/60Hz) AC 96-265V~(50/60Hz) AC 96-265V~(50/60Hz) AC 96-265V~(50/60Hz) AC 96-265V~(50/60Hz)
Product Dimensions(mm) W280 x H460 x D330 W330 x H540 x D380 W395 x H640 x D450 W470 x H740 x D520 W500 x H700 x D500 W1000 x H700 x D500
Package Dimensions(mm) W407 x H533 x D357 W457 x H616 x D407 W547 x H733 x D492 W617 x H833 x D567 W797 x H597 x D593 W797 x H597 x D1093
N.W/G.W 14.2kg/16.9kg 17.2kg/21.2kg 23.8kg/31.3kg 30.4kg/40.3kg 36.5kg/44.6kg 65.1kg/74.8kg

Dimensions

MUSE 08Pmuse-08p MUSE 10Pmuse-10p MUSE 12Pmuse-12p MUSE 15Pmuse-15p
