verity audio V2.SERIES datasheet

V2.Series


High power amplifier 2 x 4400 W 2Ω (V2.20) continuous.
2 in / 2 out configuration.
High efficiency exclusive Class I topology.
Designed to match all Verity Audio speakers.
Equipped exclusively with high-end components.
Best used on a 32A single phase 220V supply.


Features

The V.2 Series are specially designed for Verity Audio.
The high power it delivers can drive any Verity Audio speaker flawlessly.
It’s weight and compact, meeting the actual industry standard requirements.
The V.2 Series amplifiers are part of the V-Rack, a complete ready to go package.
Loved by the professional rental companies due to its reliability and all-in one compact setup.

Specifications

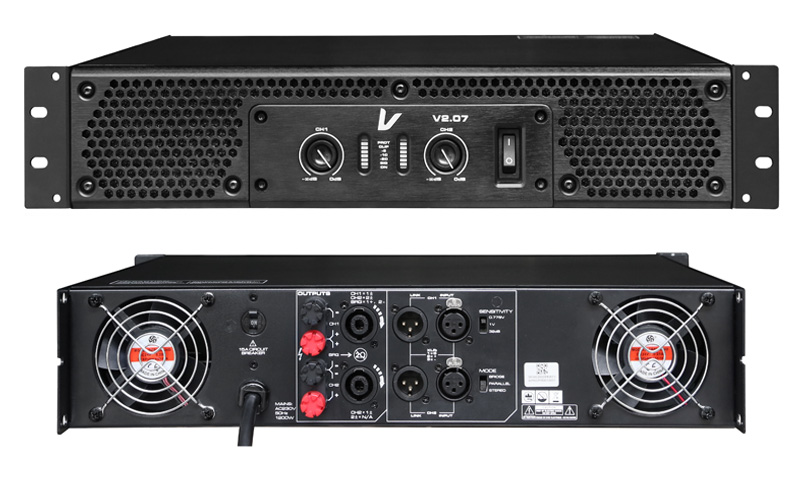

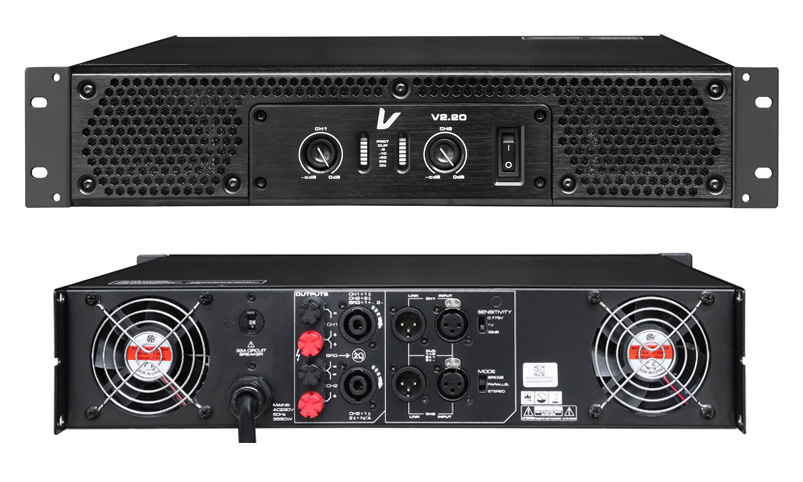

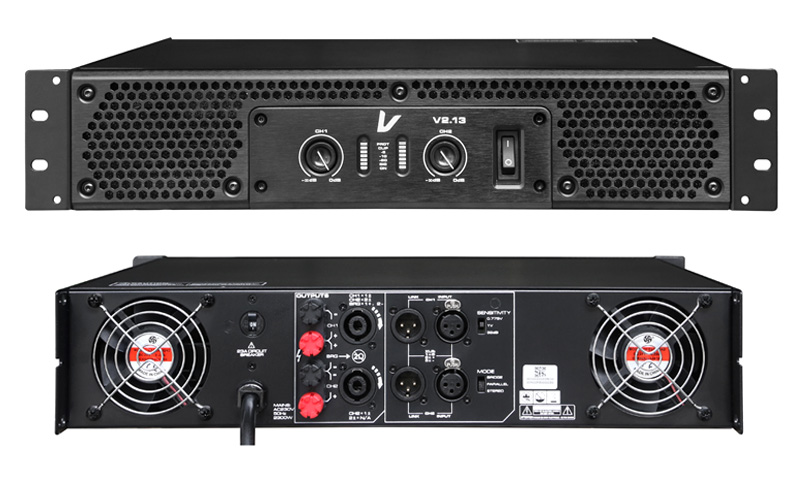

Model V2.07 V2.13 V2.20 V2.08T
Output power (AC 220v/50Hz. +/-10%. All channels driven output power, THD=1%)
8Ω Stereo* 700W x2 1300W x2 2000W x2 850W x2
4Ω Stereo** 1200W x2 2000W x2 3500W x2 900W x2
2Ω Stereo** 1600W x2 2800W x2 4600W x2 1200W x2
8Ω Bridge** 2400W 4000W 7000W
4Ω Bridge** 3000W 5400W 7800W
Other specifications
Frequency Response 20Hz – 20kHz, +0/-0.5dB 20Hz – 20kHz, +0/-0.5dB 20Hz – 20kHz, +0/-1dB 20Hz – 20kHz, +0/-0.8dB
S/N Rate ≥ 85dB ≥ 85dB ≥ 85dB ≥ 85dB
Crosstalk > 70dB > 70dB > 70dB
Input Sensitivity 32dB/1V/0.775v 0.775v
Input Impedance (bal/unbal) 20kΩ / 10kΩ 20kΩ / 10kΩ 20kΩ / 10kΩ 20kΩ / 10kΩ
Voltage Gain(8Ω) 39.7dB 42.4dB 44.2dB 40.2dB
Output circuitry Class I Class I Class I Class I
Cooling Air flow from front to rear
Connector
Input Bbalance NEUTRIK® XLR-F,Balance output NEUTRIK® XLR-M
Output NEUTRIK®Speakon NL4
Function
Front panel indicator On / Sig / Limit / VU / Protect indicator
Front panel Power switch / Volume control
Rear panel Operation Mode Operation Mode Operation Mode Operation Mode
Dimension / Weight
Product Dimensions (mm) 483 x 456.5 x 89 483 x 456.5 x 89 483 x 456.5 x 89 483 x 254 x 89
Packing Dimensions (mm) 595 x 565 x 170 595 x 565 x 170 595 x 565 x 170 560 x 420 x 170
G.W 14.3kg 14.8kg 15.2kg 14.1kg
Power AC 110v~120v / 60Hz, ±10% or AC 200v~240v / 50Hz, ±10%

Remark:
1、*,Power tested under EIA standard.
2、**, Power tested under the condition of 40ms burst, 1KHz sine wave and 1% THD.
3、Verity Audio reserves the right to make any changes to the product specifications without prior notice. The final specification is subject to the user manual.
