SUB218
SUB218 feature high-efficiency, ultra-low frequency drivers with cast frame, 4” voice coil large ferrite magnet structure. The vented cabinet designs are optimized for these transducers and use unequal diameter vent tubes for response down to 32Hz (-3dB) .
Applications
| The SUB218 is use an 2×18″ ultra-low frequency driver with 4″ voice coil 220mm ferromagnetic and aluminum frame .it can get the best radiation efficiency and outstanding performance in 32 Hz with -3dB due to Optimized design of the cabinet for transducer and the technology of unequal diameter radiant tube.it can reduce the cost of system by relaxed the requirement of the power of amplifier because it have the high efficiency of the loudspeaker.SUB218 is an indoor product, it can make the subwoofer more closer to the wall and have an outstanding performance in ultra-low frequency by the special design of the wiring position.
SUB218 subwoofer is suitable for bass reinforcement for main PA systems, touring or permanent installations for small to large stages, indoor or outdoor live performances.Suitable in spaces like:
|
Specifications
| Model | SUB218 |
|---|---|
| Power | 2400W (AES) |
| Program power | 4800W |
| Nominal Impedance | 4Ω |
| Frequency Response | 28~2.2kHz |
| Sensitivity | 103dB/W/m |
| Maximum SPL | ＞136dB(pink noise 1m 1box) |
| Driver | 2X18″ Carbon fiber cone ferret driver |
| Voice coil | 4″(100mm) |
| Connector | 2x NEUTRIK ® NL4 SPEAKON® parallel INPUT(+1/-1) LINK(+2/-2) |
| Cabinet | CNC made 18mm birch wood sandy wear-resisting environmental spray paint |
| Product Dimensions(mm) | W1180 x H590 x D720 |
| Package Dimensions(mm) | W1280 x H680 x D810 |
| N.W | 80.5kg |
| G.W | 89.5kg |
Remark：
Verity Audio reserves the rights to make changes in specification without prior notice.
The final specification is subject to the user’s manual.

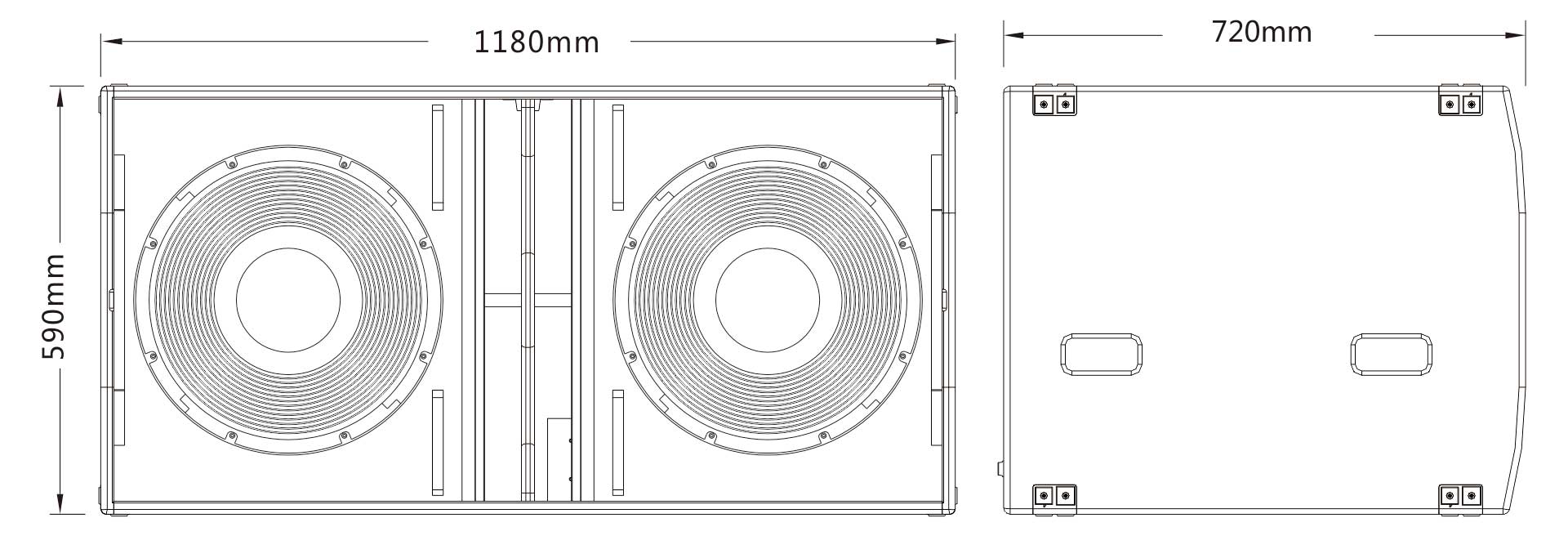

Dimensions
SUB218 |
