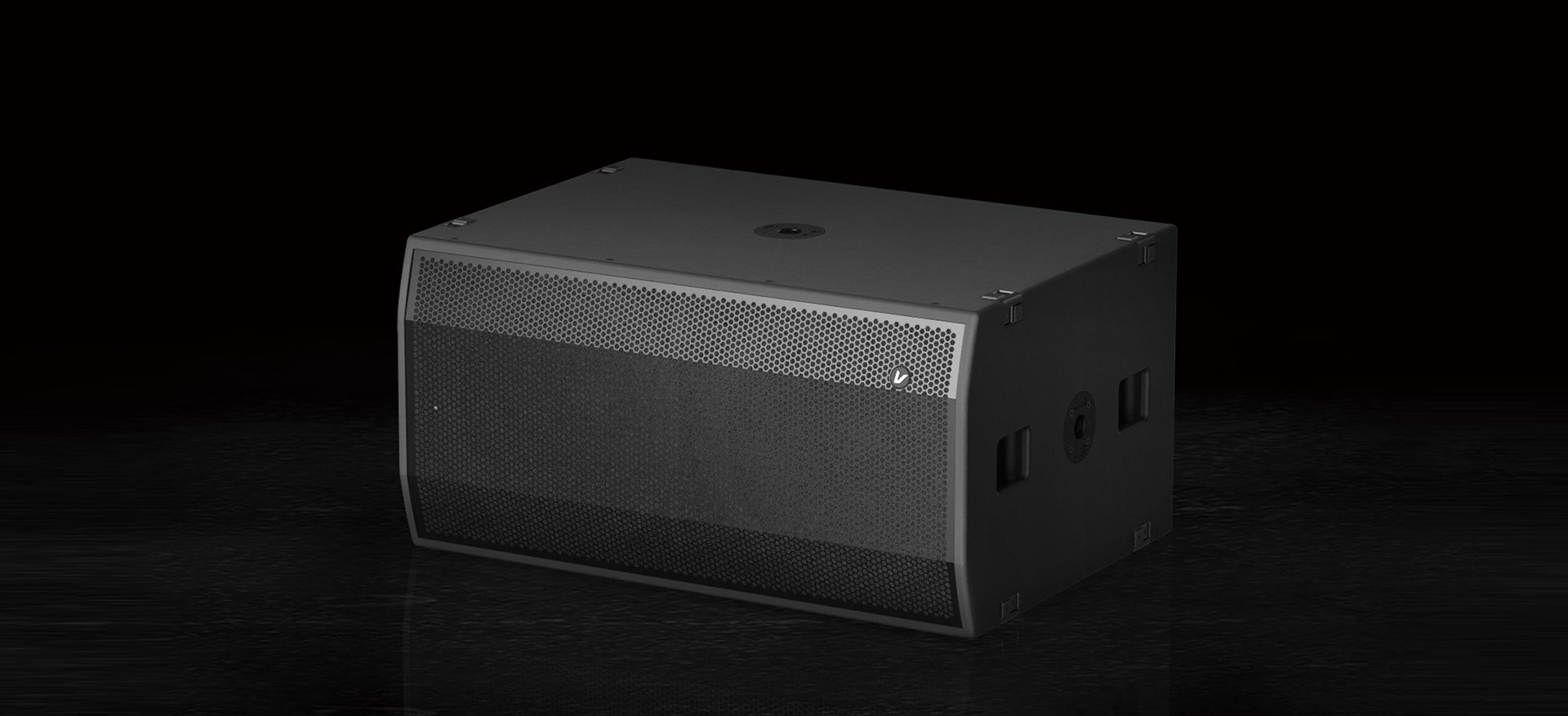

SUB215P


SUB215P is an active phase inversion subwoofer with 15 inch units with two independent power amplifier modules.
Design mainly with MUSE series,built-in frequency divider and power amplifier module.
Full voltage suitable for different countries voltage requirements with the main volume adjustment.Phase 0/180 degrees adjustable,frequency division point 60-150Hz adjustable.It can be used in KTV,multi-function hall,small activities and other places.
Unique V-NET product network management system.

Specifications

Model SUB215P
Power 800W (AES)
Program power 1600W
Impedance
Frequency response 35-900Hz
Sensitivity 101dB/1W/1m
Maximum SPL >135dB
LF Driver 2X15″ driver
Voice coil 3.0″
Amplifier
Frequency response 20-20kHz
THD+N <0.1%
S/N >95dB
slew rate >10V/μs
Damping factor >100
Sensitivity 0.775V
Voltage gain 40dB
Input impedance 20Ω
Output circuitry Class D
Supply voltage 100-240V~(50/60Hz)
Phase 0°/180°
Low-pass 60~150Hz
Product Dimensions(mm) 1000 x 500 x 700

Remark:
Verity Audio reserves the right to make any changes to the product specifications without prior notice. Final specifications to be found in the user manual.

Dimensions

SUB215P
Verity Audio
